Node

UNLang Node (LangNode) is the fundamental object. All visualized node of UNLang should be inherit from UNLang Node.

What’s LangNode

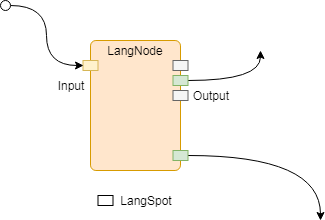

LangNode is just like an electronic component with input/output pins. The signal triggers the input pin, then the whole LangNode is running. While the LangNode runs or terminate, it could trigger the signals to the output pins.

LangSpot

LangSpot is the node pin. A customized module should define how many input or output LangSpots. Then UNLang could visualize the module in editor and standard the operations on the module.

public sealed class LangSpot
{
    public LangSpot(string name, LangType.Category category, Node owner, int capacity, SpotType type);
}

Parameter	Description
name	LangSpot name.
category	The connection value type. Details please check LangType.Category.
owner	The LangSpot owner, it always be this.
capacity	How many connections to the LangSpot at the same time.
type	The LangSpot type. It could be In (Input) or Out (Output).

NodeInterface

Using NodeInterface attribute, user could define the visual result of a module in UNLang editor.

NOTE: NodeInterface is a required option for a module.

Implement Your Module

LangNode and LangSpot standard the basic component and operation for a module.

Let’s implement a basic module in UNLang by using UnityEngine.Debug to show a constant string Hello UNLang!.

[NodeInterface("MyModule", "Script/")]
public sealed class MyModule : LangNode
{
    public override void Init()
    {
        Add(new LangSpot("Show", LangType.Category.Any, this, -1, SpotType.In));
    }

    public override void OnSignal(Spot spot, params object[] args)
    {
        if (SpotType.In == spot.Type)
        {
            UnityEngine.Debug.Log("Hello UNLang!");
        }
    }
}

What the user need to do is:

• Firstly, override Init method to define the LangSpot of the module.

  Example code define one LangSpot. Show is the LangSpot name; Any means the LangSpot could connect any type value from the up-stream; this is the owner of the LangSpot; -1 means it could be connected with any count lines at the same time; In means it’s an input spot.

• Secondly, handle the logic in OnSignal method.

  Example code check if the spot type is In, then print Hello UNLang! string in console window.

• Finally, use NodeInterface attribute to define the module name and category in UNLang editor.

  Example code define the module name is MyModule and it is under Script menu.

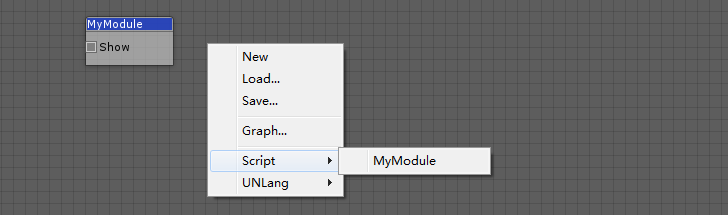

The following snapshot is MyModule in UNLang editor:
